windlock Noise Barrier
—

Metlock™ Noise Barrier –

METLOCK™ noise barriers are designed to reduce noise using sound absorption principles and are optimized to meet EN14388/89 standards as well as IRC, MoRTH, and other international traffic noise barrier guidelines. These systems utilize mono- and bi-facial absorptive panels to manage surrounding noise, creating quieter environments for nearby residents. The modular post and panel design simplifies installation for various noise control applications.

—

Why Choose Metlock Noise Barrier? –

  • Material and Construction: Metlock™ noise barriers typically consist of a porous material sheet on the noise source side for absorption and a solid, reflective side facing the protected receptor. These are often sandwich panels made of steel or aluminum with a sound-absorbing material in between. The construction includes mineral/rock wool (water repellent) and solid metallic panel.
  • Absorption Technology: As an absorptive noise barrier system, METLOCK directly absorbs sound intensity and dissipates energy through sound-absorbing materials.
  • Customization: Metlock™ system allows for aesthetic and performance customizations to meet specific project needs, performing effectively across low, medium, and high-frequency bandwidths.
  • Compliance: Metlock noise barriers meet acoustic, mechanical, and physical performance standards in accordance with EN-14388, IRC:SP-130, and IS standards.
  • Components: The main frame support structure is made of hot-rolled medium and high tensile structural steel universal beams, welded at a steel base plate, complying with IS 2062 standards. Vertical posts are fixed to a reinforced concrete base using chemical anchor fasteners. The entire structure is coated as per IS standards.

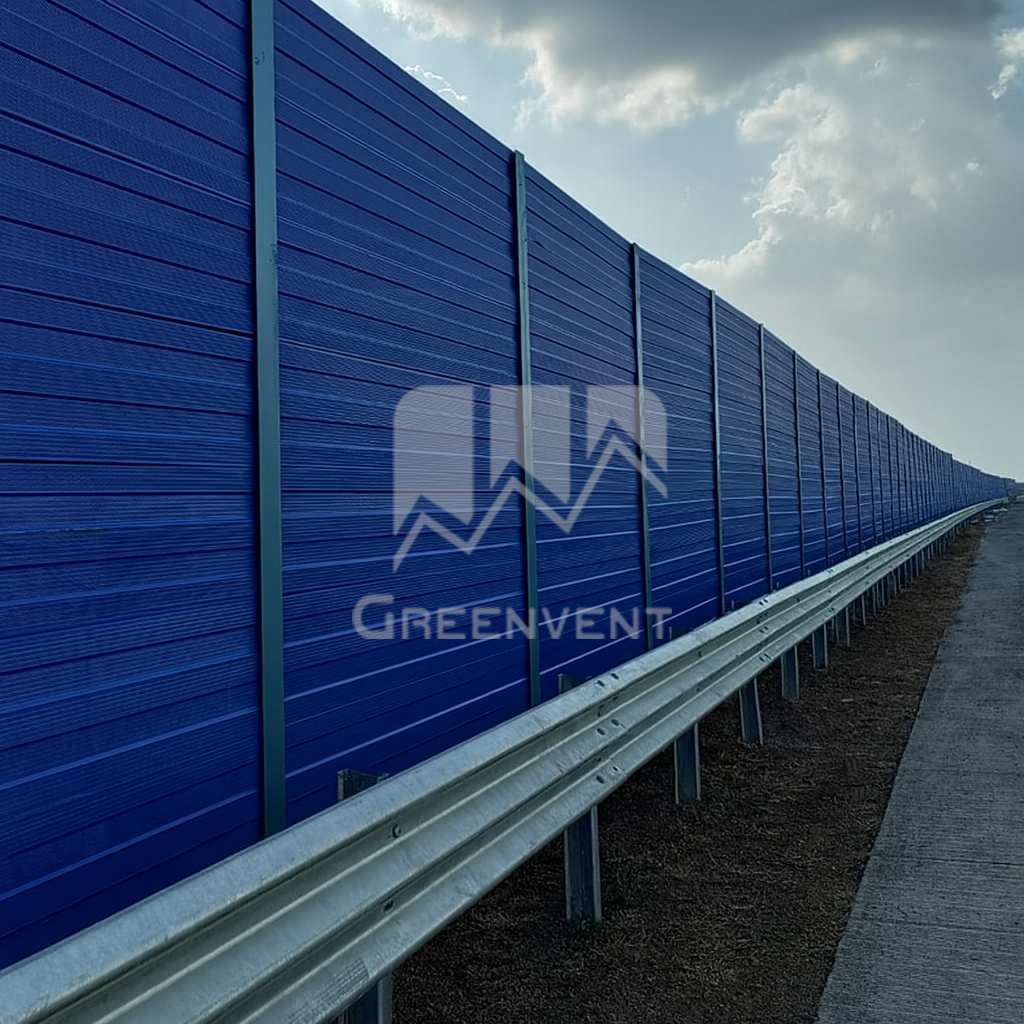

Installation
—

Features –

Panel Thickness: 100MM Thick Mono & Bi Absorptive Panels

Durable Coated Construction: Galvanized/Aluminium Sheet Polyester Powder Coated Panels ​with 20-25 Years Design Life

Enhanced Acoustic Performance: Enhanced Performance with Customized Shapes

Certified Quality Standards: Tested as per EN 1793 & 1794 Standards

Modular Installation System: Modular Panels Installed within H Beam

Advanced Road Safety Solutions: Tailored Solutions for Extra Road Safety Requirements

Production & Delivery Capacity: 25,000 SQMT/Month

Seamless System Integration: Integration with Doors, Transparent Panels, Security Mesh, Plantation, Crash Barriers, Railings etc

Extreme Weather Adaptability: Customization for Extreme Weather Conditions​

Anti-Theft Protection: Theft Resistance​

—

Benefits –

Improves Quality of Life: Reduces ambient noise and enhances living comfort.

Increases Property Value: Enhances real estate desirability and market price.

Reduces Noise Complaints: Lowers public grievances in noise‑sensitive zones.

Protects Sensitive Areas: Ideal for areas like schools, parks, and hospitals.

High Durability: Weather-proof, corrosion-resistant finishes for long‑term use.

Certified & Compliant: Meets EN, MORTH, IRC, and IS infrastructure standards.

—

Applications –

App 1
Railways & Metros
App 2
Industrial Area
App 3
Highways
App 4
Flyovers
—

Acoustic Performance –

Sound Absorption Coefficient, DLαNRD > 8.5 dB
Noise Reduction Coefficient (NRC) > 0.85
Airborne Sound Insulation DLR > 25 dB
Sound Transmission Class (STC) > 33 dB
